DC 5V Icro 2-Phase 4-Wire Stepper Otor Linear Rail 48 Stroke Linear Lead Screw Slider Stepping Otor Sall Electric Otor

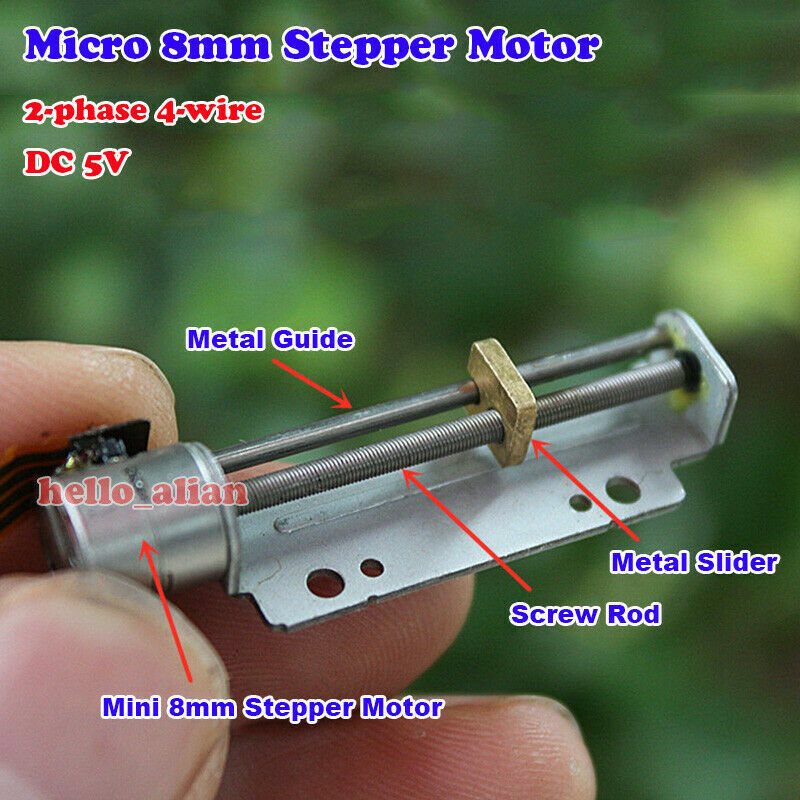

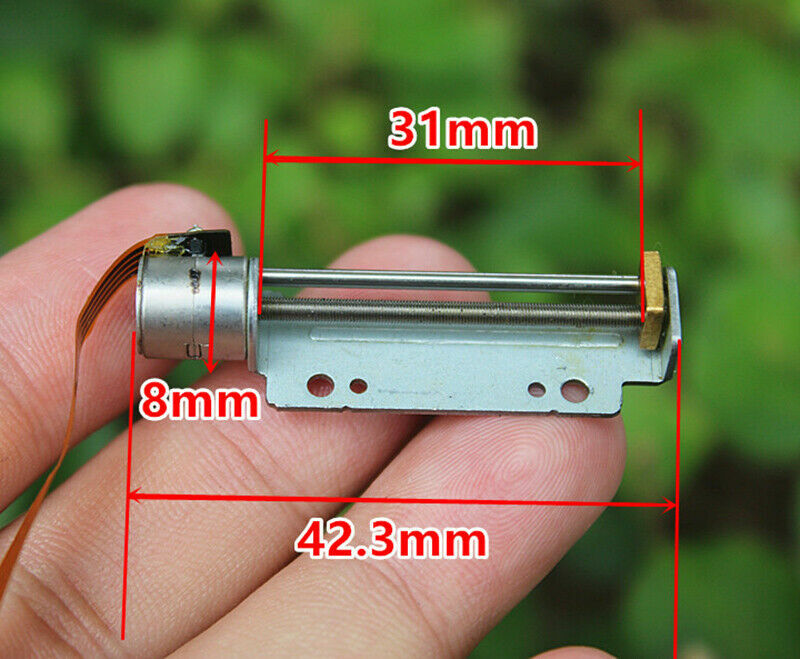

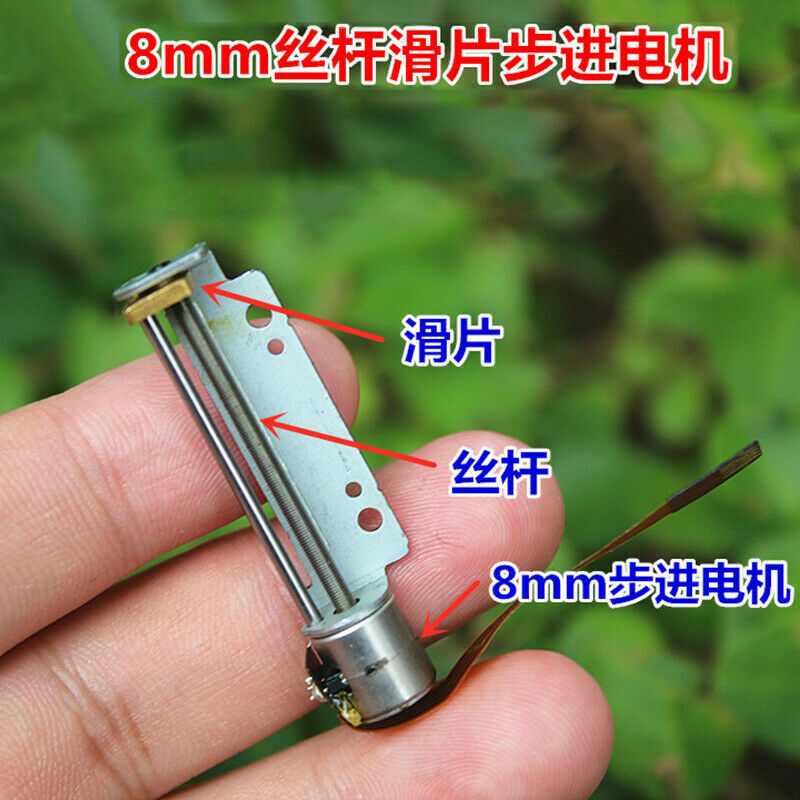

Package Included: 1 x Stepper Motor Specification: CD-ROM Driver Stepper motor with screw slide, Two-phase four-wire stepper motor Motor Type: 2-phase 4-wire Drive Voltage: 5V-12V/ 100-300mA Stage Total Size: 81.5x25X20mm/ 3.2 x0.98 x0.78 (including motor) Sliding Block Size: 25x10x14mm/0.98x0.39x0.55 Motor Diameter: 15mm/ 0.59 Motor Length: 11mm/ 0.43 Step Angle: 18 degrees (20 pulses per revolution) Lead Screws Length: 60mm/ 2.36 Lead Screws diameter: 3mm/ 0.11 Effective Slide Stroke: 48mm/ 1.89 Screw Pitch: 3mm/ 0.11 (3mm per revolution) The fastest moving speed: about 200mm / min Fine Design: This rail and linear block are small and light, especially suitable for small teams. The tool is simple and easy to use, strong and durable. Technical Data: Drive Voltage: 5V-12V / 100-300mA; Step Angle: 18 degrees; Stage Total Size: 3.2x0.98x0.78 (including motor); Sliding Block Size: 0.98x0.39x0.55; Motor Diameter: 0.59; Motor Length: 0.43; Lead Screws Length: 2.36 ; Lead Screws diameter: 0.11; Effective Slide Stroke Travel: 1.89; Wire length: 4.72. Note That: This stepping motor direct power is not rotating, it need to stepper motor driver board. Wiring method: Yellow A+, White A-, Red B+, Black B-. Service: If you have any questions or encounter any problems while using this motor, please contact us proactively. We will reply promptly during working hours and do our best to solve your problem.
