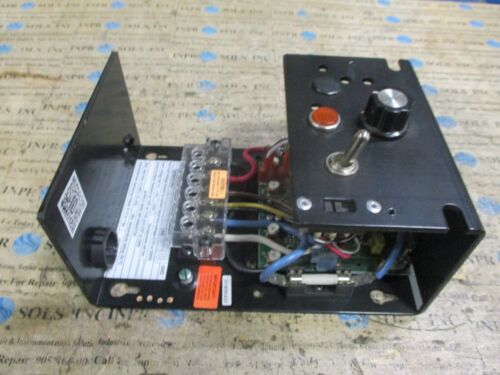

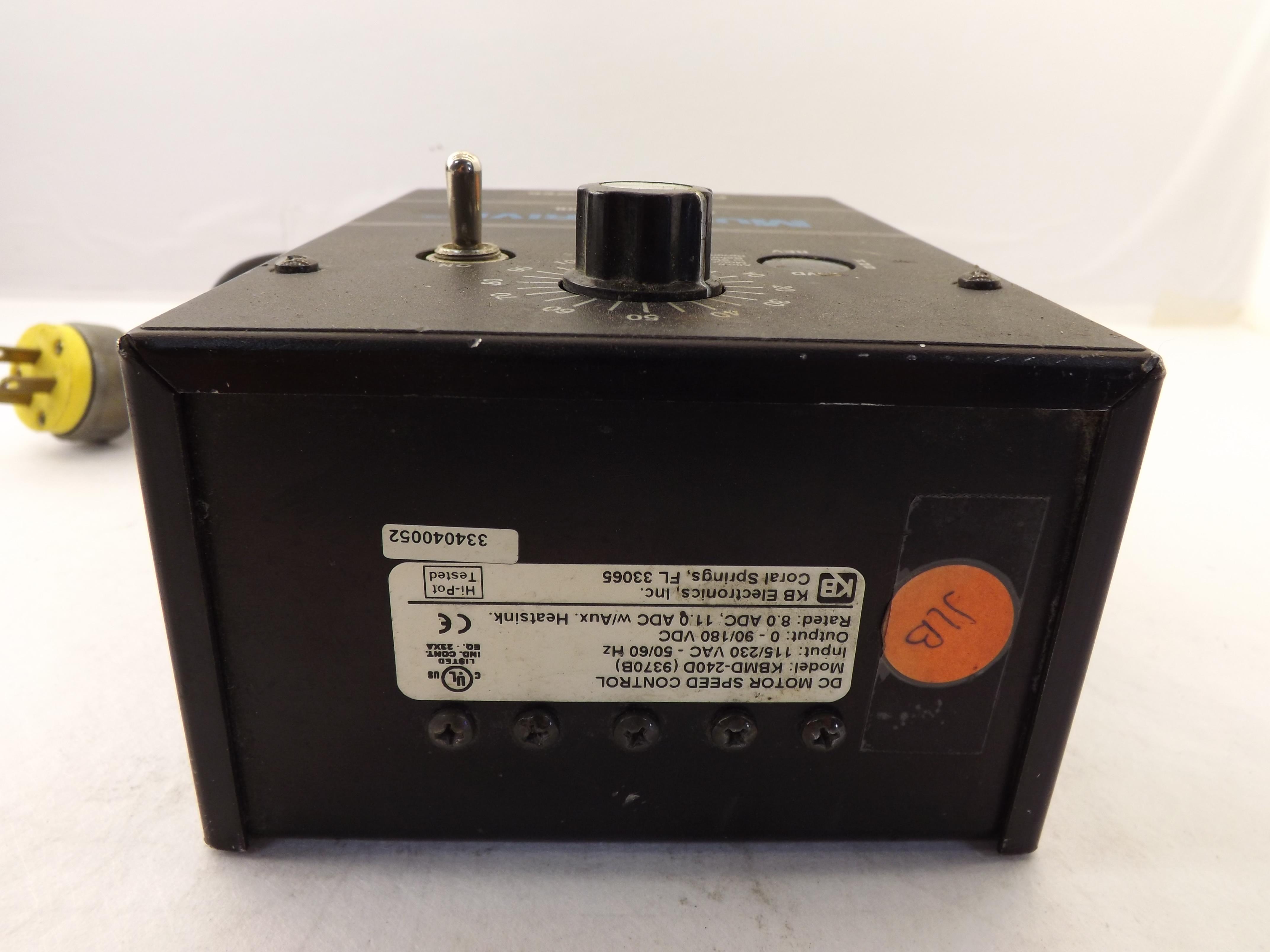

KBMD-240D 9370 KB Electronics KB Penta Multi-Drive Variable DC Speed Controller With Box For Shunt Wound Motor Pm Motor

The KBMD, also known as the Multi‑Drive, can be used with motors from 1/100 through 2 horsepower and is housed in a NEMA‑1 Aluminum enclosure. The heart of this DC Drive is the KBMM. A unique feature of the KBMD allows it to operate a 90 VDC motor from either 110 or 240 VAC making it universally acceptable. Armature Feedback It is rugged and compact is size and is able to handle both 115 and 230V AC line inputs by setting the built-in Dual Voltage Switch. In addition, the single model can be used on a wide range of motors by selecting and inserting the appropriate Plug-in Horsepower Resistor. The standard model, KBMD-240D, controls all motors through 3⁄4 Hp at 115V and 1.5 Hp at 230V. The versatility of the control is enhanced with the optional Forward-Brake-Reverse Switch Kit. Its field-proven reliability is confirmed by over 100,000 controls presently in operation. Keyhole slots facilitate mounting while a readily accessible terminal block simplifies wiring. Included with each control is a detailed instruction and user manual. Direct replacement for the BALDOR BC140 SpecificationsItem Number:KBMD-240DUPC:24822093705Brand:KB E
