AS5600 Encoder Magnetic Induction Angle Sensor - IFuture Technology

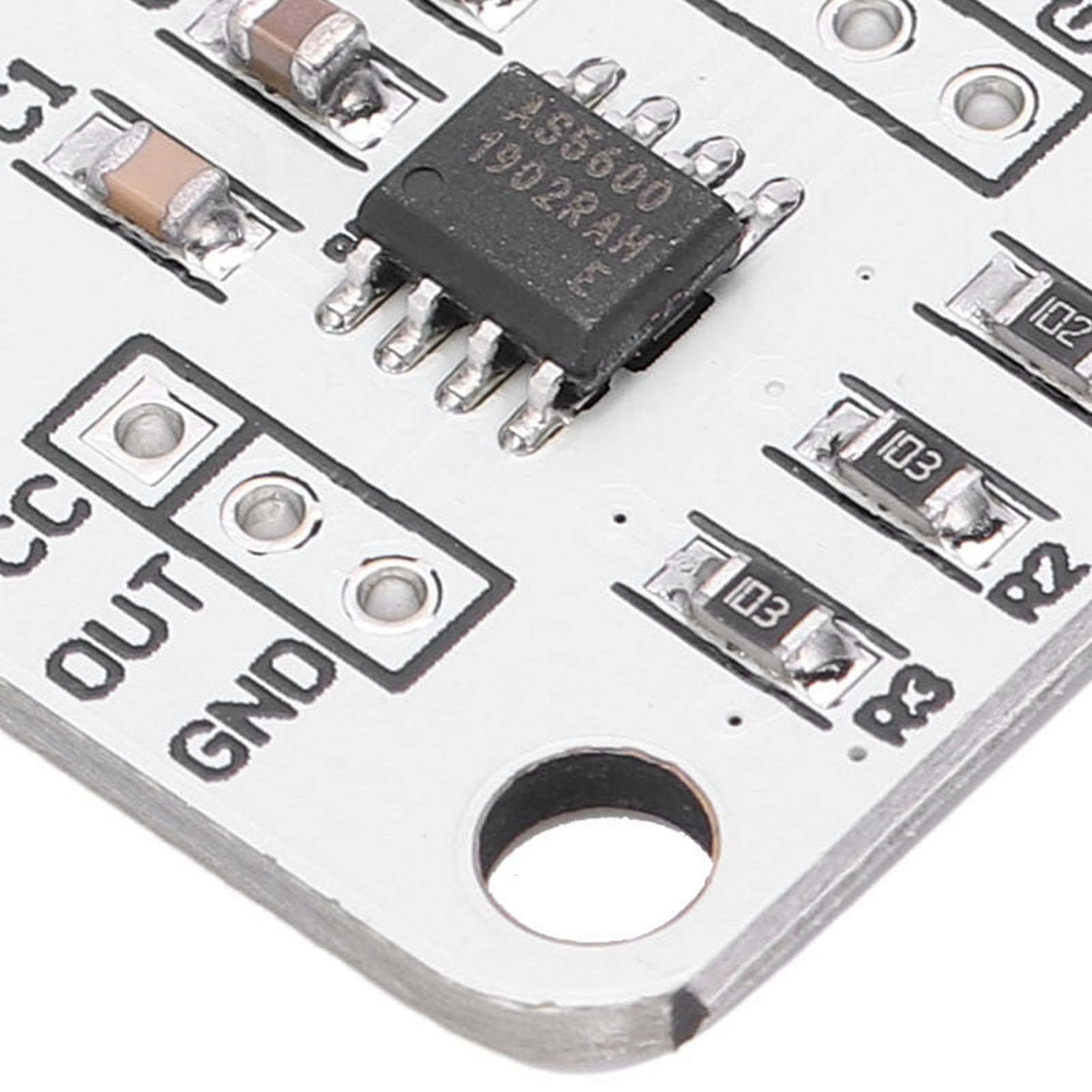

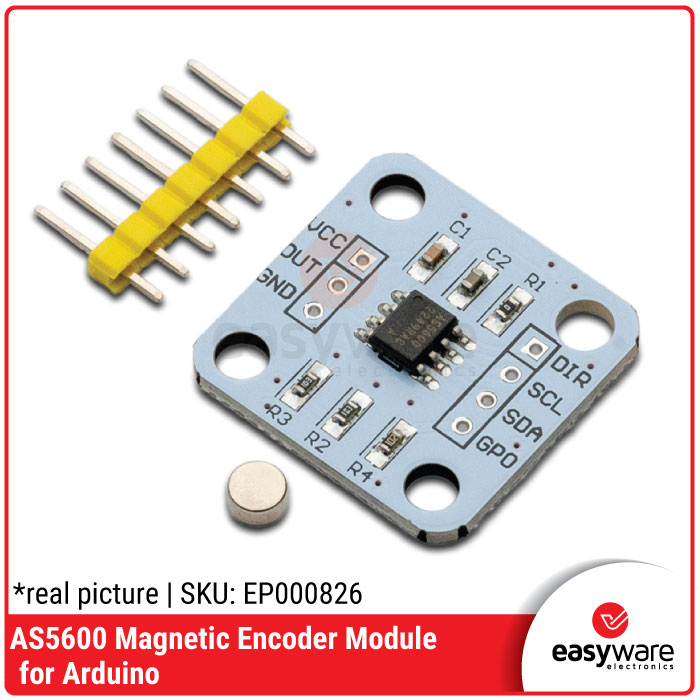

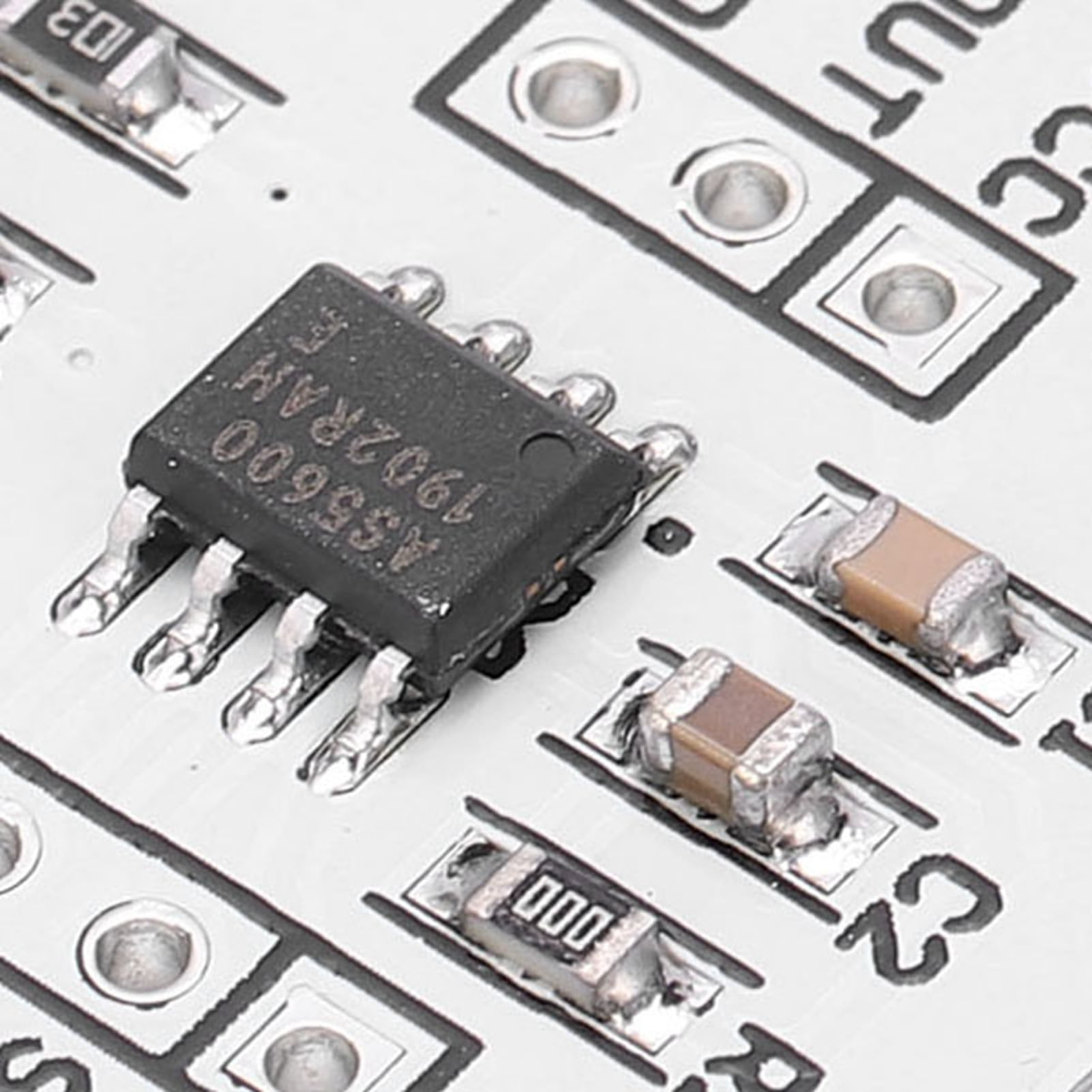

Specification: Product parameter: AS5600 magnetic encoder Color: As pictures shown. Size: approx. 23x23mm(0.91x0.91in) Product type: Non-contact magnetic induction Out mode:IIC ,PWM, voltage, etc. Feature: It is made of KB-A grade FR-4 glass fiber board with a thickness of 1.6mm. The board surface is flat and not easy to be bent. Each PCB board has been tested by flying probes before leaving the factory, and the quality is worth relying on. AS5600 is also equipped with an intelligent low power consumption mode, which automatically reduces power consumption. The input pin (DIP) selects the output polarity rotation direction. AS5600 magnetic encoder module This module is mainly placed behind the stepper motor to obtain the rotation angle of the stepper motor. This principle is to use the AS5600 magnetic encoding, and then stick a magnet on the main shaft of the stepping motor. Information such as the rotation speed of the spindle can be obtained through magnetic encoding. Made of high quality material, the module is durable and has long service life. Package included: 2pcs AS5600 magnetic encoder module with magnet and pin header
